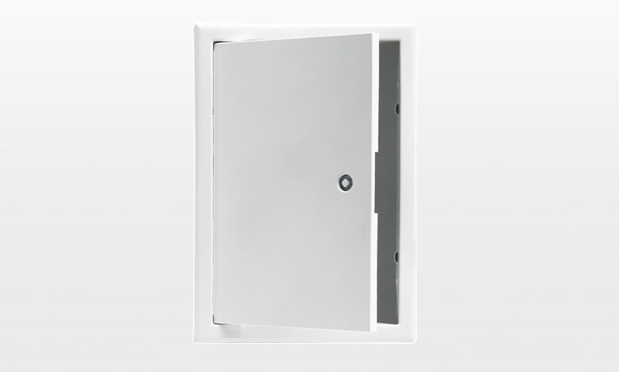

Access panel Softline
The Softline has a frame with softened profile for the clean installation on finery or gypsum board surfaces. It can be installed on massive walls and gypsum board walls.

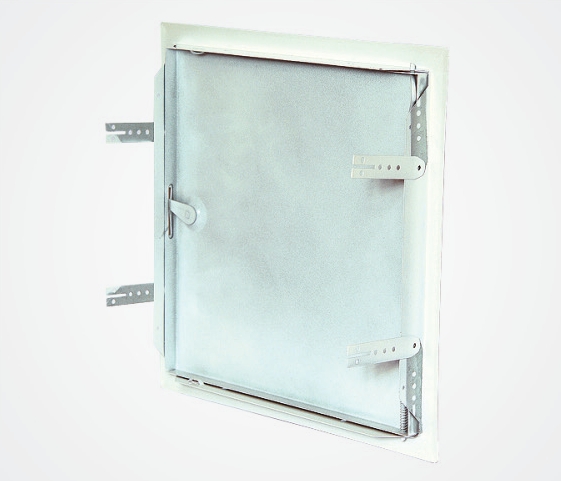

Access panel SOFTLINE with square lock
Design: galvanized steel plate, stainless steel, white (RAL 9016) or special RAL colour. Standard sizes from 150 x 150 mm to 600 x 600 mm. Special size can be produced to exact centimetre specification on request. Four riveted, revolvable masonry anchors (two on the 150 x 150 mm doors) ensure a safe installation on wall or ceiling. Removable door for left and right rabbet.

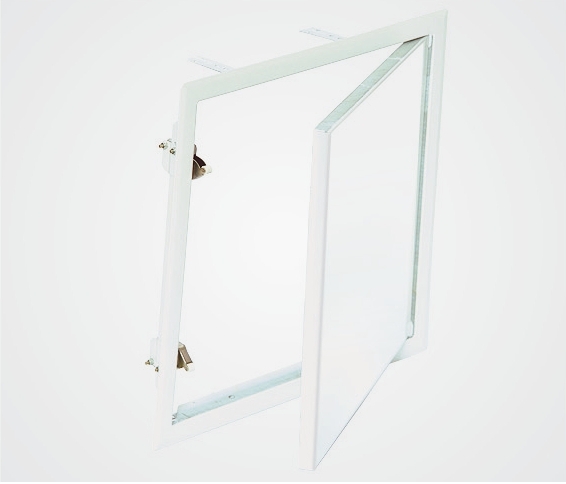

Access panel SOFTLINE with snap lock
Design: galvanized steel plate, stainless steel, white (RAL 9016) or special RAL colour. Smooth door with concealed snap lock. Open and close by applying pressure on the lock side. Four riveted, revolvable masonry anchors (two on the 150 x 150 mm doors) ensure a safe installation on wall or ceiling. Removable door for left and right rabbet.

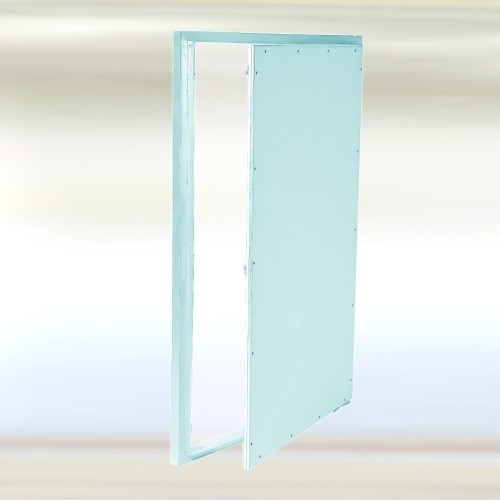

Access panel alu - Jumbo door
Aluminium frame, for drywall and various applications - System T.
This access panel consists of a welded aluminium frame and is strenthened with an aluminium square tubing. This reinforced square tubing allows one large door. The door is non-removable.
The reveal of 1.5 mm is visible between the outer frame and door hatch. The concealed snap locks open the access panel when pressure is applied to the spring loaded latch side.
This access panel is designed for larger openings that require one door.
Access panels ALU-STAR for gypsum board constructions
ALU-STAR is suitable for installation on gypsum board walls or ceilings.

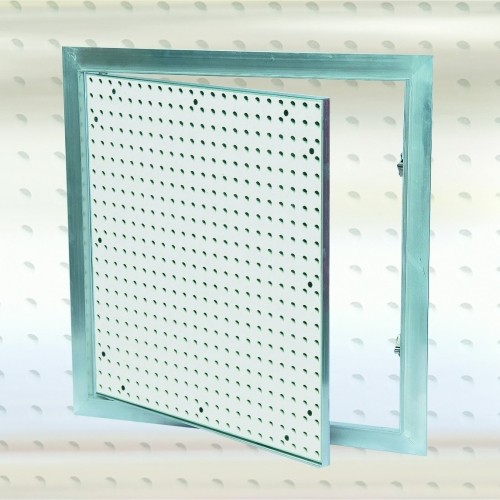

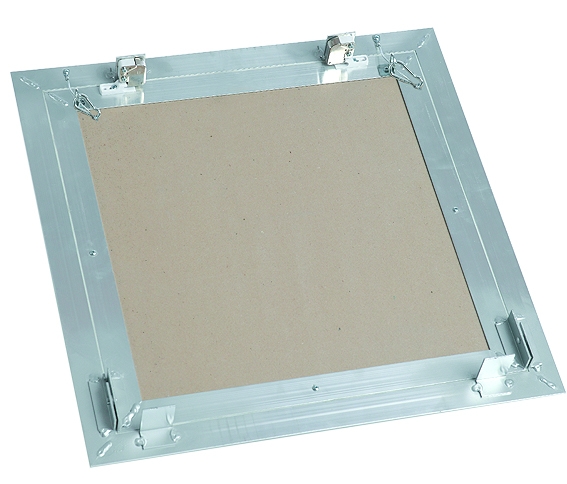

System F2 AK - Aluminium frame, with or without plasterboard inlay, for ceilings and drywall partitions
The access panel consists of aluminium profiles, with or without plasterboard inlay GKBI from 10 mm to 25 mm and two latches.
Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process. For sizes from 300 x 300 mm, the access panel is equipped with a safety-system against accidental opening. In order to avoid accidents, this safety-system has to be secured after each opening. The access panel is easily installed in walls and ceilings. A joint gap of 1.75 mm is visible between outer frame and door leaf, which is equipped with a circumferential joint. The concealed snap locks open the access panel when pressure is applied to the flap on the spring loaded latch side.

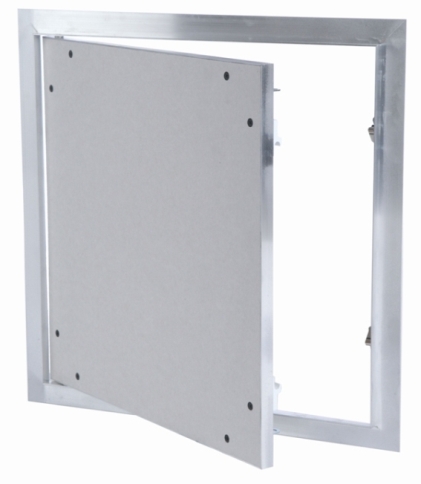

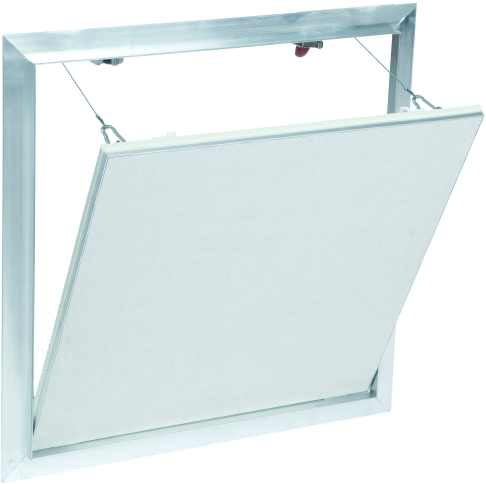

System F1 - Aluminium frame, with or without plasterboard inlay, for ceilings and drywall partitions
The access panel consists of aluminium profiles – with or without plasterboard inlay GKBI from 10 mm to 25 mm and two latches.
Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process. For sizes from 300 x 300 mm, the access panel is equipped with a safety-system against accidental opening. In order to avoid accidents, this safety-system has to be secured after each opening. The access panel is easily installed in walls and ceilings.
A joint gap of 1.5 mm is visible between outer frame and door leaf. The concealed snap locks open the access panel when pressure is applied to the flap on the spring loaded latch side.

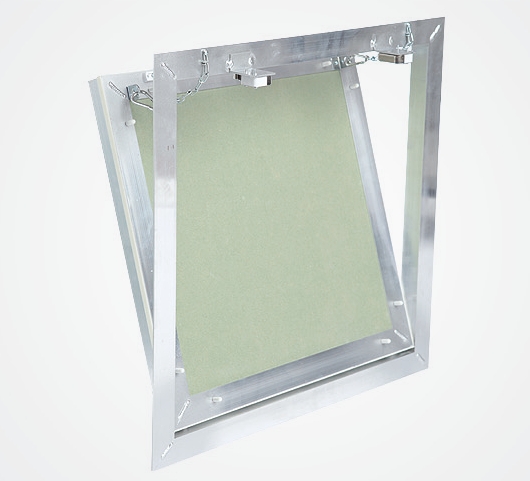

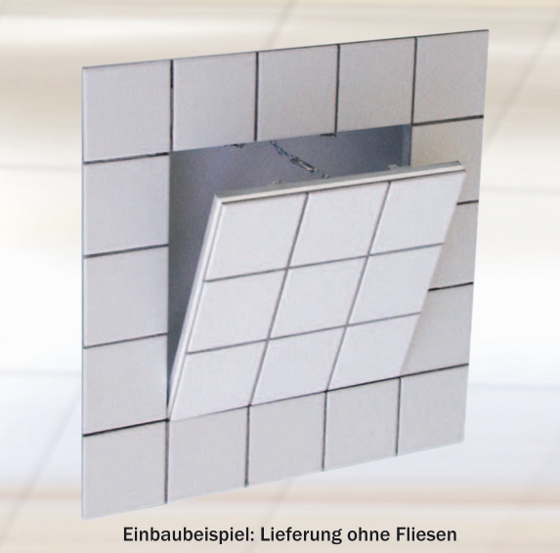

Access panel alu for tiling
Aluminium frame, with plasterboard inlay, for drywall partitions - System F3.
The access panel consists of aluminium profiles, with plasterboard inlay GKBI 12.5 mm, 15 mm or 25 mm and two latches.
Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process. The access panel is equipped with a catchwire. In order to avoid accidents, this safety-system has to be secured after each opening.
The access panel is readily installable in walls. A joint gap of 3 mm (version 1) or 1.5 mm (version 2) is visible between outer frame and door leaf, which is equipped with a circumferential joint. The concealed snap locks open the access panel when pressure is applied to the spring loaded latch side.

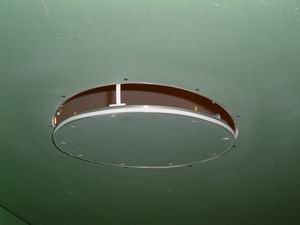

Access panels ALU-STAR Rondo, for ceiling
The ALU-STAR Rondo is suitable for 12,5 mm thick gypsum board ceiling. The flap can be completely removed. Open and close by applying pressure on the flap.

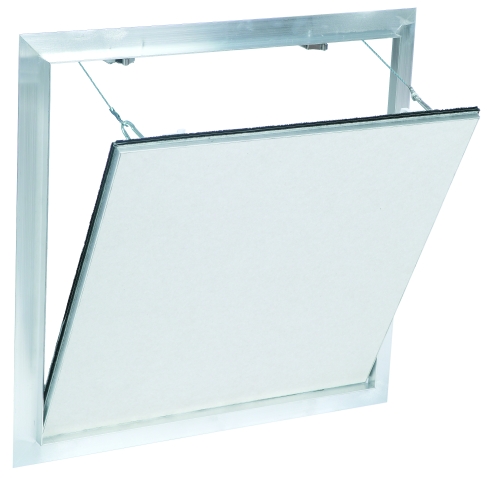

Access panel ALU-STAR AIRPROOF
Airproof design, approved in compliance with DIN EN 14351, class 4
Identical in construction like ALU-STAR, with double lip-seal, density class 4 (highest)
Approval MPA NRW 120002612-10
ALU-STAR with fire-protection
ALU-STAR EI30 EI60, EI90, EI120 for ceiling
The ALU-STAR EI30 is suitable for 12.5, 15 and 2x12.5mm thick gypsum board ceiling. It’s in compliance with EN 1365-2 for suspended ceiling of construction type II and III, EI30 AB in compliance with DIN 4102-4. The flap can be completely removed. Open and close by applying pressure on the flap.

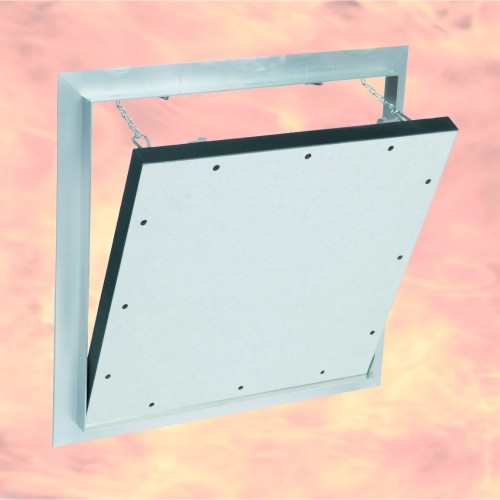

ALU-STAR EI30, EI60-90-120, partition wall
The ALU-STAR is suitable for partition wall with 12.5, 15 and 2x12.5mm thick gypsum board. It’s in compliance with DIN 4102, 1994-03, P-MPA-E-04-005. EI30 is suitable for 12.5 and 15 mm gypsum board, EI60-90-120 suitable for 2x12.5 mm gypsum board. The flap can be completely removed. Open and close by applying pressure on the flap.

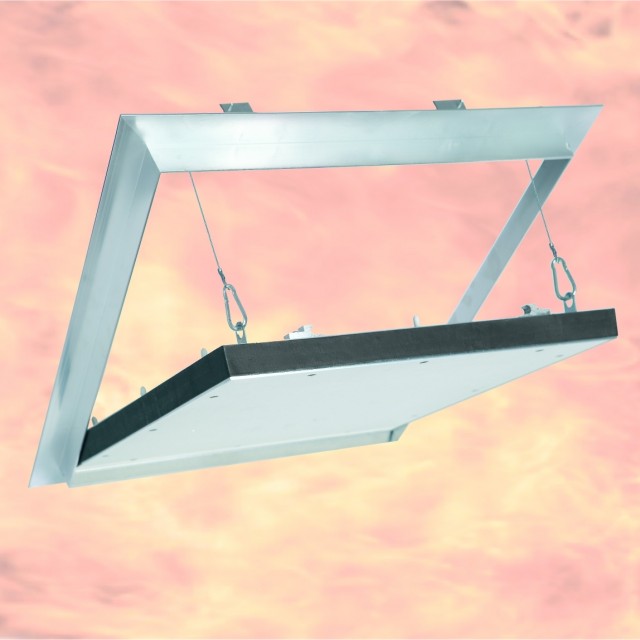

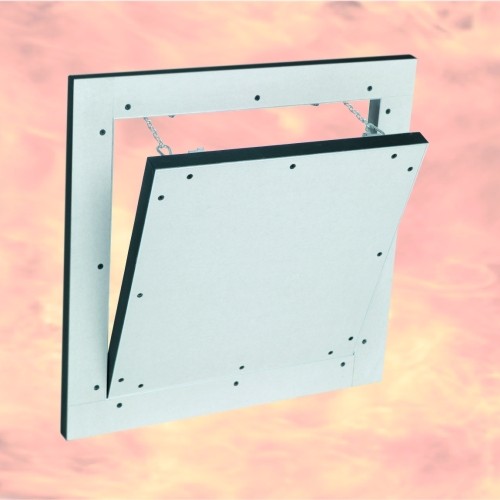

System BMW - for solid walls EI30
The access panel consists of aluminium profiles with plasterboard inlay GKF 25 mm (EI30).
Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process. The access panel is equipped with two catchwires. In order to avoid accidents, this safety-system has to be secured after each opening.
A joint gap of 1,5 mm is visible between outer frame and door leaf, which is equipped with a circumferential fire-resistant seal (foaming). The concealed snap locks open the access panel when pressure is applied to the flap on the spring loaded latch side.
Using the enclosed masonry straps, the access panel can be fixed easily into solid walls.

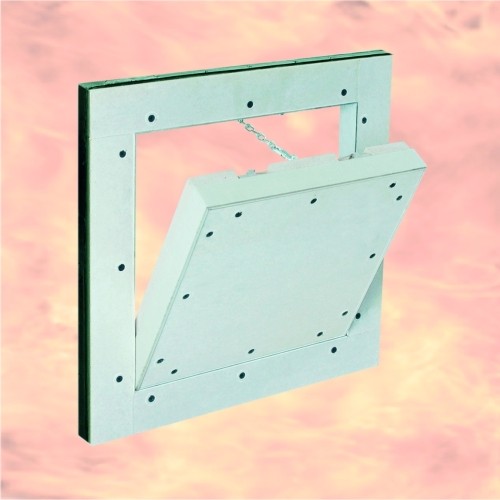

System BMW - for solid walls EI60
The access panel consists of aluminium profiles with plasterboard inlay GF 30 mm (EI60).
Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process. The access panel is equipped with two catchwires. In order to avoid accidents, this safety-system has to be secured after each opening.
A joint gap of 2,5 mm is visible between outer frame and door leaf, which is equipped with a circumferential fire-resistant seal (foaming). The concealed snap locks open the accesss panel when pressure is applied to the flap on the spring loaded latch side.
Using the enclosed masonry straps, the access panel can be fixed easily into solid walls.

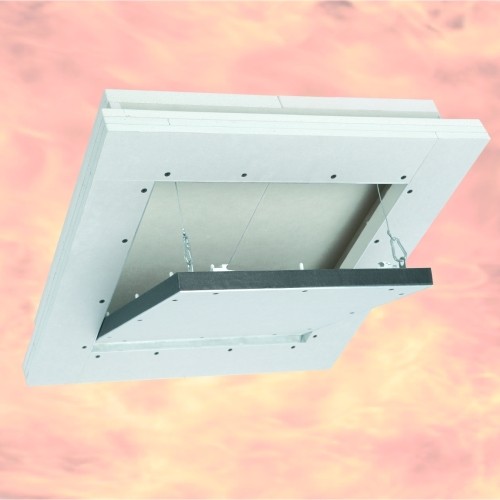

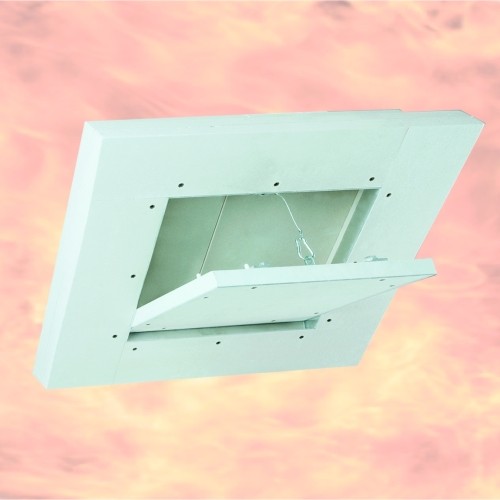

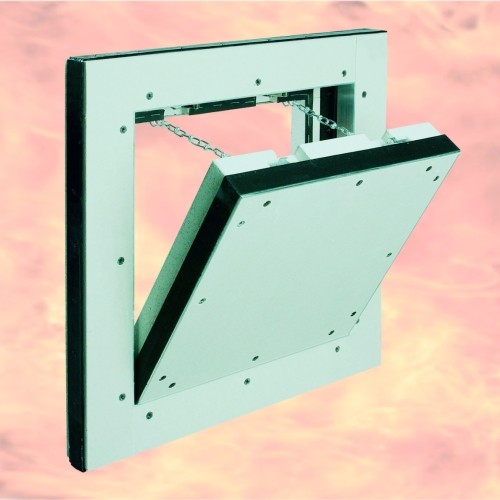

System BMW - for solid walls EI90/ EI120
The access panel consists of aluminium profiles with plasterboard inlay GKF 40 mm (EI90).
Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process. The fire-resistant double-layer cladding on the reverse side meets the required fire resistance standard. The access panel is equipped with two catchwires. In order to avoid accidents, this safety-system has to be secured after each opening.
A joint gap of 1,5 mm is visible between outer frame and door leaf, which is equipped with a circumferential fire-resistant seal (foaming). The concealed snap locks open the access panel when pressure is applied to the flap on the spring loaded latch side.
Using the enclosed masonry straps, the access panel can be fixed easily into solid walls.

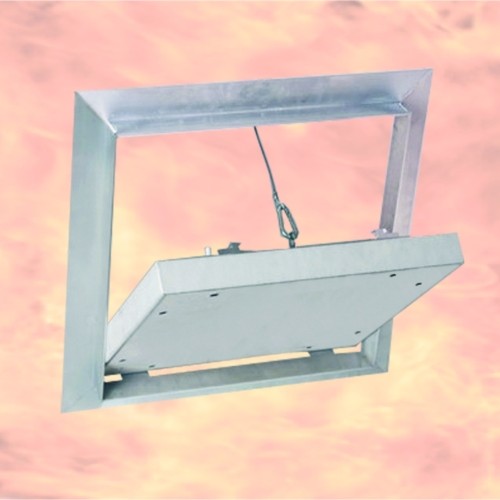

EI30 and EI60 fire resistant doors made in steel painted white.
The access panel is designed for installation to gipsum board construction or massive wall or ceiling (EI60 only for wall). The fire-resistant door meets the required fire resistance standard. The access panel is equipped with 3 square key locking.
Access panels "airtight and dust-proof"
The access panel consists of a solid outer frame and a hatch, made of galvanized sheet steel with integrated four-square lock. The standard colour is white - RAL9016

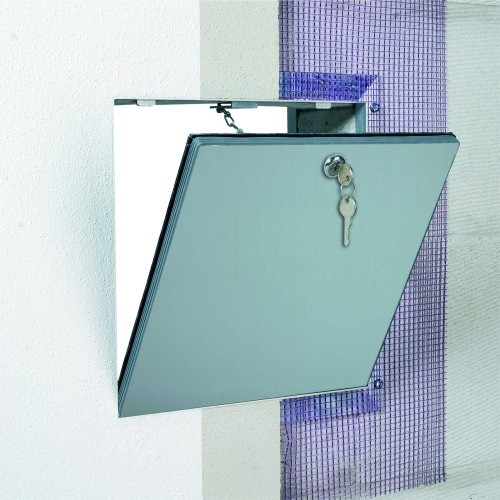

Access panel for facade
System MP - Access panel for plastering
The access panel consists of aluminium profiles, a cement board and a round cylinder lock with key. Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process.
The access panel is equipped with a safety-system against accidental opening.A joint gap of 3 mm is visible between outer frame and door leaf, which is equipped with an innovative brush joint (air-tight and dust-proof) and, in addition, with a special joint (splash-proof). Access panels for facades in the outer area are applicable for direct mounting onto solid walls (without external wall insulation system) or for installation into a wall insulation system (foam-sealed) from an insulation thickness of 80 mm.

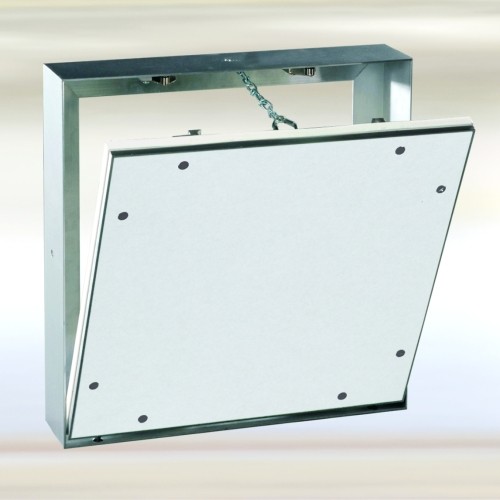

Access panel alu for solid walls
System MW - Aluminium frame, with or without drywall inlay, for solid walls
The access panel consists of a welded aluminium frame and is available with or without drywall inlay of 12,5 mm, 15 mm or 25 mm and two latches.
Both an outer and an inner frame assembly consists of high grade aluminium which is bonded with a special welding process for sizes 300 x 300 mm and up the access panels are equipped with a safety system to prevent accidental opening. This safety system must be reattached if the hatch is removed.
|
